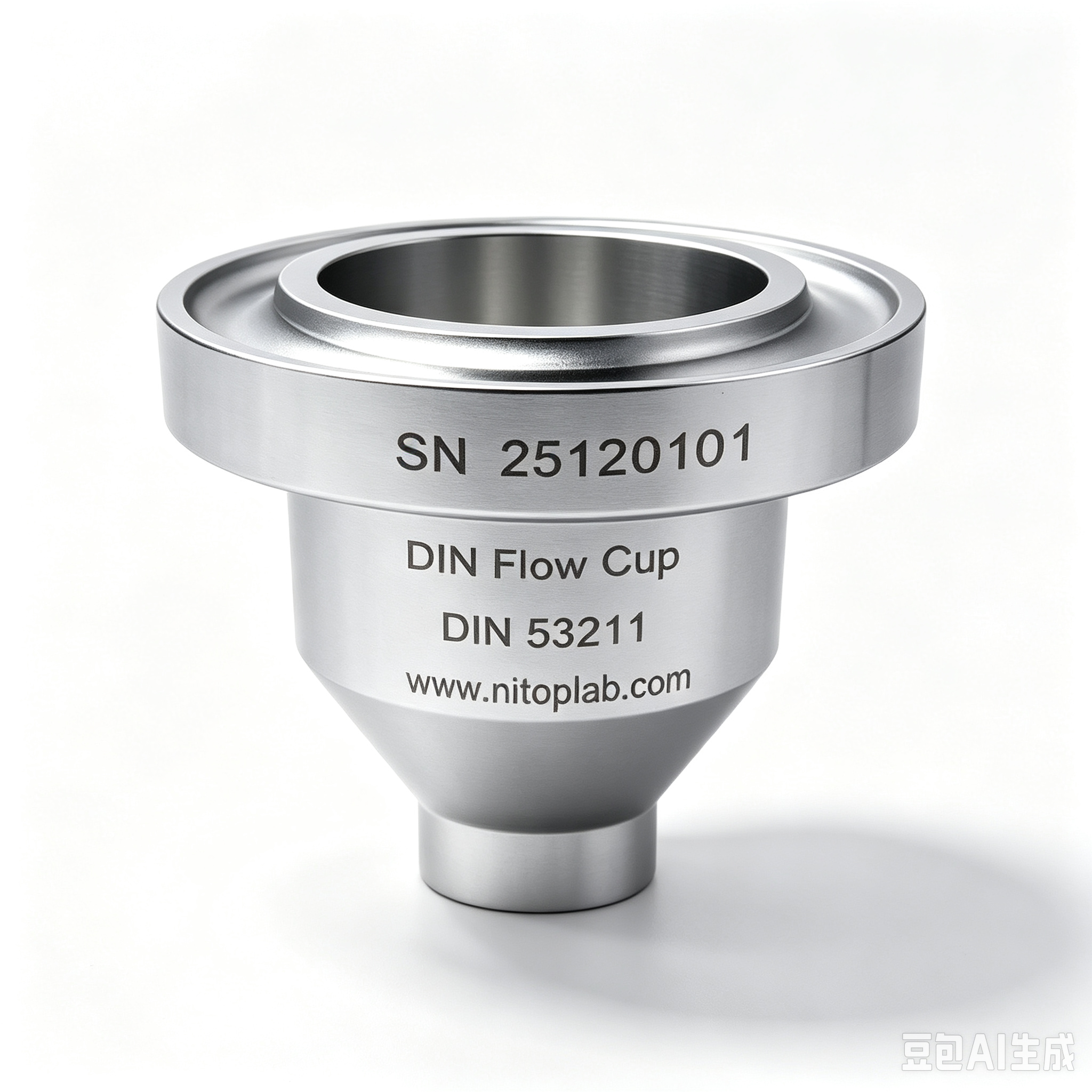

Select a thumbnail to change viewDin flow cup
The Nitop/DIN Standard and Dip Viscosity Cups are produced with an easily removable orifice. Cup and orifice production tolerance permits replacement of the orifice without loss of acceptable tolerance. In accordance with Deutsche Normen DIN 53211. It complies with DIN 53211 standard and is applied for low viscosity liquids.
- Standard Background: DIN 53211 has been equivalently replaced by the international standard ISO 2431, which is universally adopted by EU clients and German-based manufacturers.

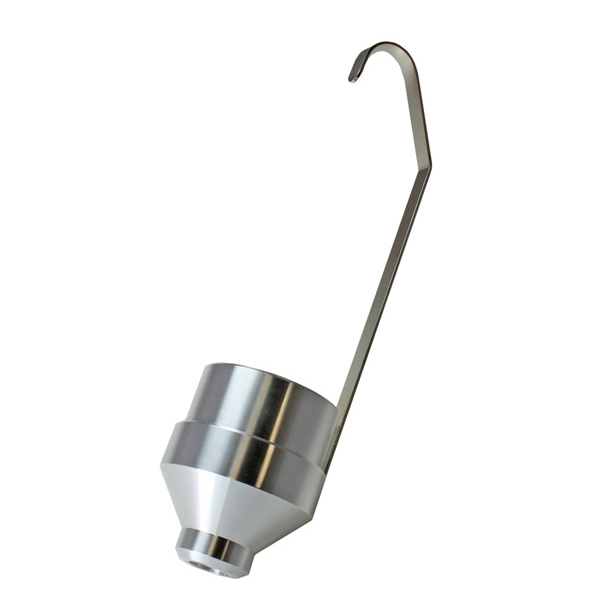

- Two structural types are available: bench-mounted handle-free type (for precise laboratory testing with support stand) and long-handle hand-held immersion type (to be directly dipped into paint pails on production lines).
- Standard Volume: Uniformly 100±1mL, differing from the 44mL Zahn Cup and 50mL IWATA NK-2.
Ordering Information:
NT 103/2---Din 2# Flow Cup（Orifice Dia.：2mm）
NT 103/4---Din 4# Flow Cup（Orifice Dia.：4mm）

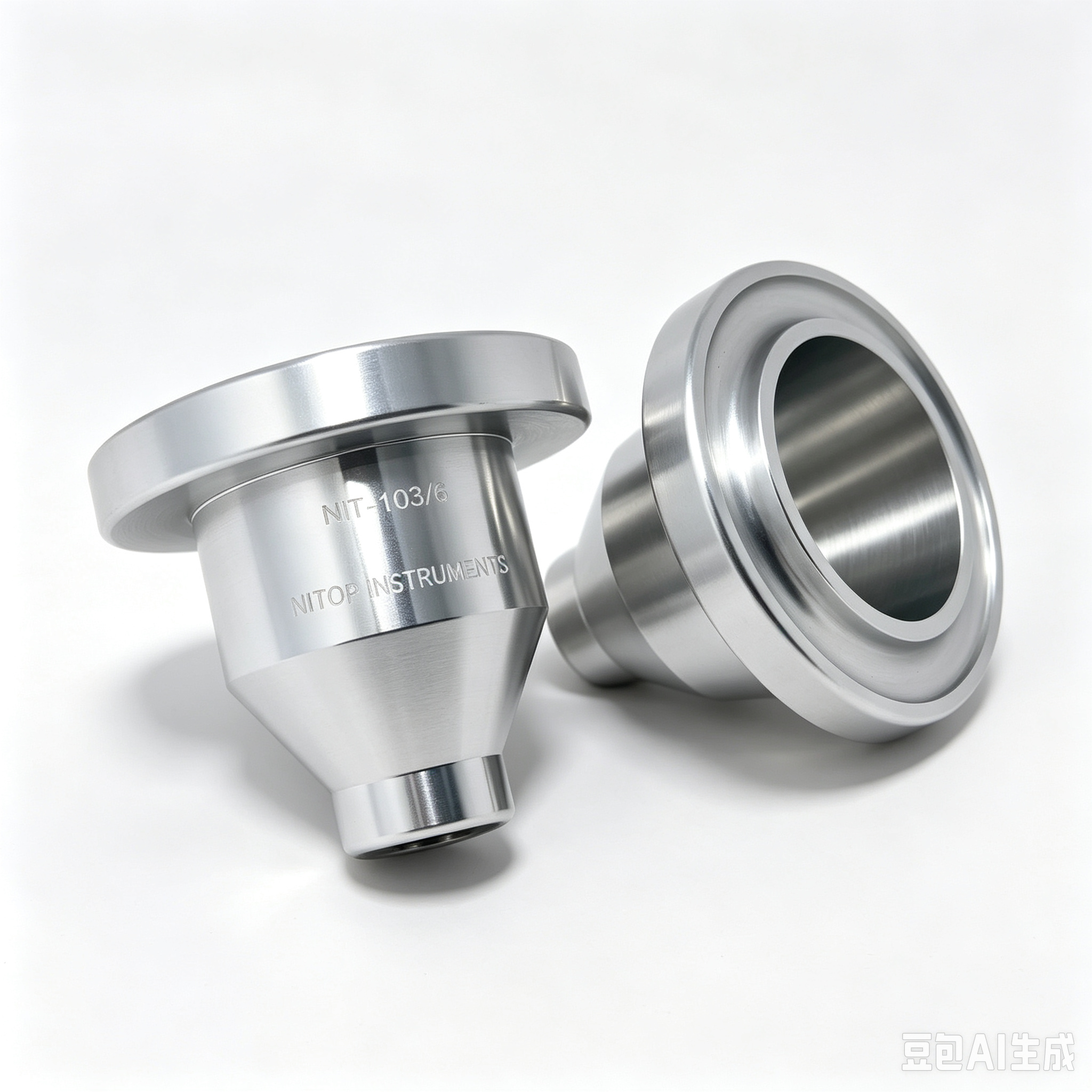

NT 103/6---Din 6# Flow Cup（Orifice Dia.：6mm）

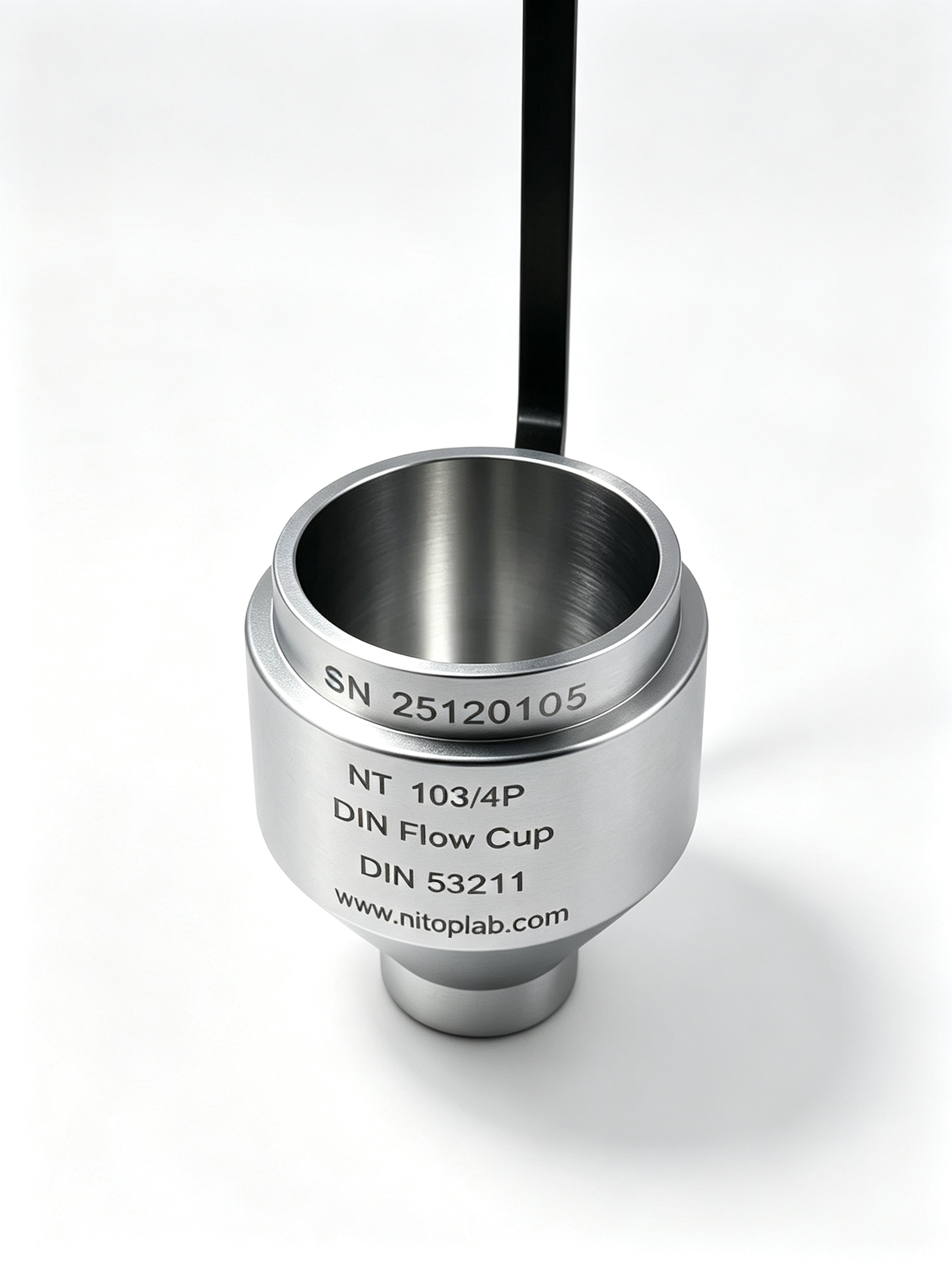

NT 103/4P---Hand-Held Din 4# Flow Cup（Orifice Dia.：4mm）
NT 1272---Din Flow Cup Nozzles
Technical Parameters
■ Volume of Cup：100ml±1ml
■ Body is made of anodized aluminum
■ Stainless steel orifice, interior polished
| DIN model | Orifice Dia | Din sec | Centistokes Range (cSt) | Application field |
| DIN 2# | Ø2.0mm | 30–120s | 15–95 | Suitable for ultra-thin color concentrates, solvent thinners, clear varnishes and water-based dye solutions. |
| DIN 4#（主力款） | Ø4.0±0.02mm | 20–110s | 96–683 | Industrial topcoats, wood coatings, metal spraying paints, screen printing inks (universal testing standard for European customers) |
| DIN 6# | Ø6.0mm | 20–100s | 550–1500 | Medium-high viscosity primers, epoxy coatings, high-viscosity printing inks |
| DIN 8# | Ø8.0mm | 20–90s | 1200–3000 | high-build adhesives, high-solids epoxy coatings and paste coatings. |
